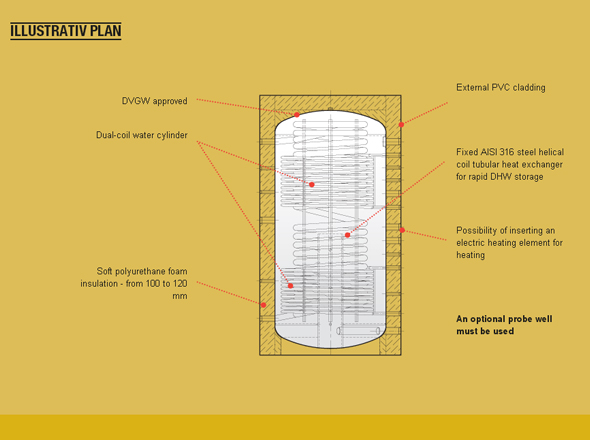

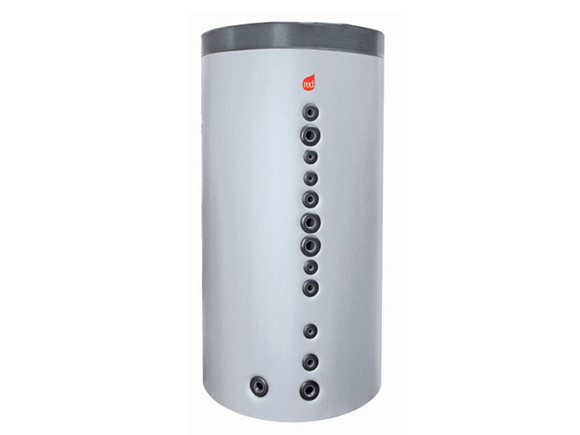

Combined instant CYLINDER “pipe in tank”
Used mostly in large and medium-sized systems. Ideal in solutions with high levels of DHW consumption
Suitable for teaming with different heat sources (Stoves, Closed Fireplaces, etc.)
optimal heat exchange with solar panels even in spring and autumn
technical characteristics
| Hopper capability | 1000.00 kg |
| Weight | 265 kg |
| Insulation thickness | 120 mm |
| Height | 2110.00 mm |
| Bottom Coil Surface Area | 3.50 m˛ |
| Top Coil Surface Area | 3.00 m˛ |

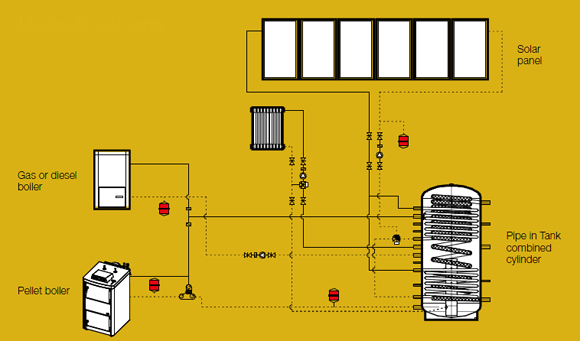

Hydraulic scheme
| Hopper capability | 1250.00 kg |
| Weight | 309 kg |
| Insulation thickness | 120 mm |
| Height | 2100.00 mm |
| Bottom Coil Surface Area | 3.80 m˛ |
| Top Coil Surface Area | 3.20 m˛ |
Hydraulic scheme
| Hopper capability | 1500.00 kg |
| Weight | 336 kg |
| Insulation thickness | 120 mm |
| Height | 2240.00 mm |
| Bottom Coil Surface Area | 4.00 m˛ |
| Top Coil Surface Area | 3.50 m˛ |
Hydraulic scheme
| Hopper capability | 2200.00 kg |
| Weight | 413 kg |
| Insulation thickness | 120 mm |
| Height | 1440.00 mm |
| Bottom Coil Surface Area | 5.50 m˛ |
| Top Coil Surface Area | 4.20 m˛ |
Hydraulic scheme
| Hopper capability | 500.00 kg |
| Weight | 140 kg |
| Insulation thickness | 100 mm |
| Height | 1720.00 mm |
| Bottom Coil Surface Area | 2.30 m˛ |
Hydraulic scheme
| Hopper capability | 800.00 kg |
| Weight | 242 kg |
| Insulation thickness | 120 mm |
| Height | 1930.00 mm |
| Bottom Coil Surface Area | 3.00 m˛ |
| Top Coil Surface Area | 2.00 m˛ |
Hydraulic scheme
