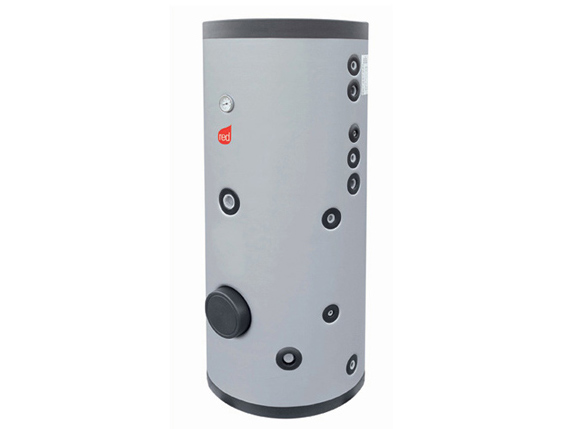

STORAGE cylinder for domestic hot water
The easiest and cheapest solution for DHW production. Ideal when you want to incorporate your heating system with storage cylinder.
3 VERSIONS: from 200 litres to 500 litres

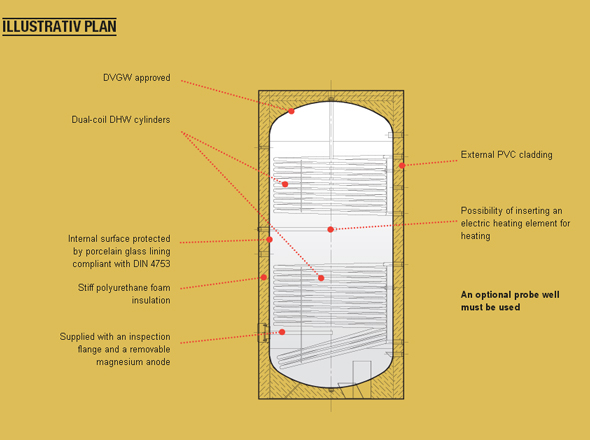

optimal heat exchange: lower outputs than water thanks to the larger heat exchange surface
technical characteristics
| Hopper capability | 200.00 kg |
| Weight | 84 kg |
| Insulation thickness | 50 mm |
| Height | 1265.00 mm |
| Bottom Coil Surface Area | 0.80 m˛ |
| Top Coil Surface Area | 0.80 m˛ |

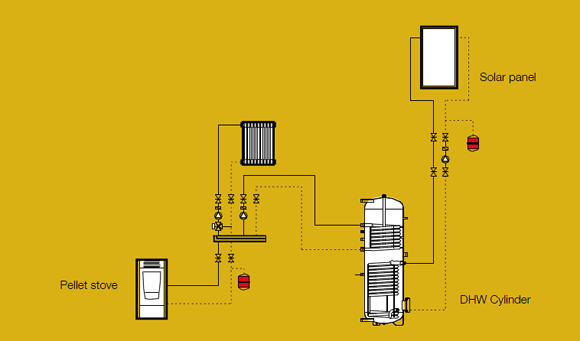

Hydraulic scheme
| Hopper capability | 300.00 kg |
| Weight | 111 kg |
| Insulation thickness | 50 mm |
| Height | 1710.00 mm |
| Bottom Coil Surface Area | 1.40 m˛ |
| Top Coil Surface Area | 1.80 m˛ |
Hydraulic scheme
| Hopper capability | 500.00 kg |
| Weight | 154 kg |
| Insulation thickness | 50 mm |
| Height | 1780.00 mm |
| Bottom Coil Surface Area | 1.40 m˛ |
| Top Coil Surface Area | 2.40 m˛ |
Hydraulic scheme
